40' GP

External Length

12.192 m (40 ft)

External Width

2.438 m (8 ft)

External Height

2.591 m (8 ft 6 in)

Internal Length

12.032 m (39 ft 3.5 in)

Internal Width

2.352 m (7 ft 8.5 in)

Internal Height

2.393 m (7 ft 10 in)

Door Opening Width

2.340 m (7 ft 8 in)

Door Opening Height

2.280 m (7 ft 6 in)

Internal Volume

67.7 m³ (2,390 cu ft)

Tare Weight

3,700 kg (8,157 lbs)

Max Payload

26,700 kg (58,863 lbs)

Max Gross Weight

30,400 kg (67,020 lbs)

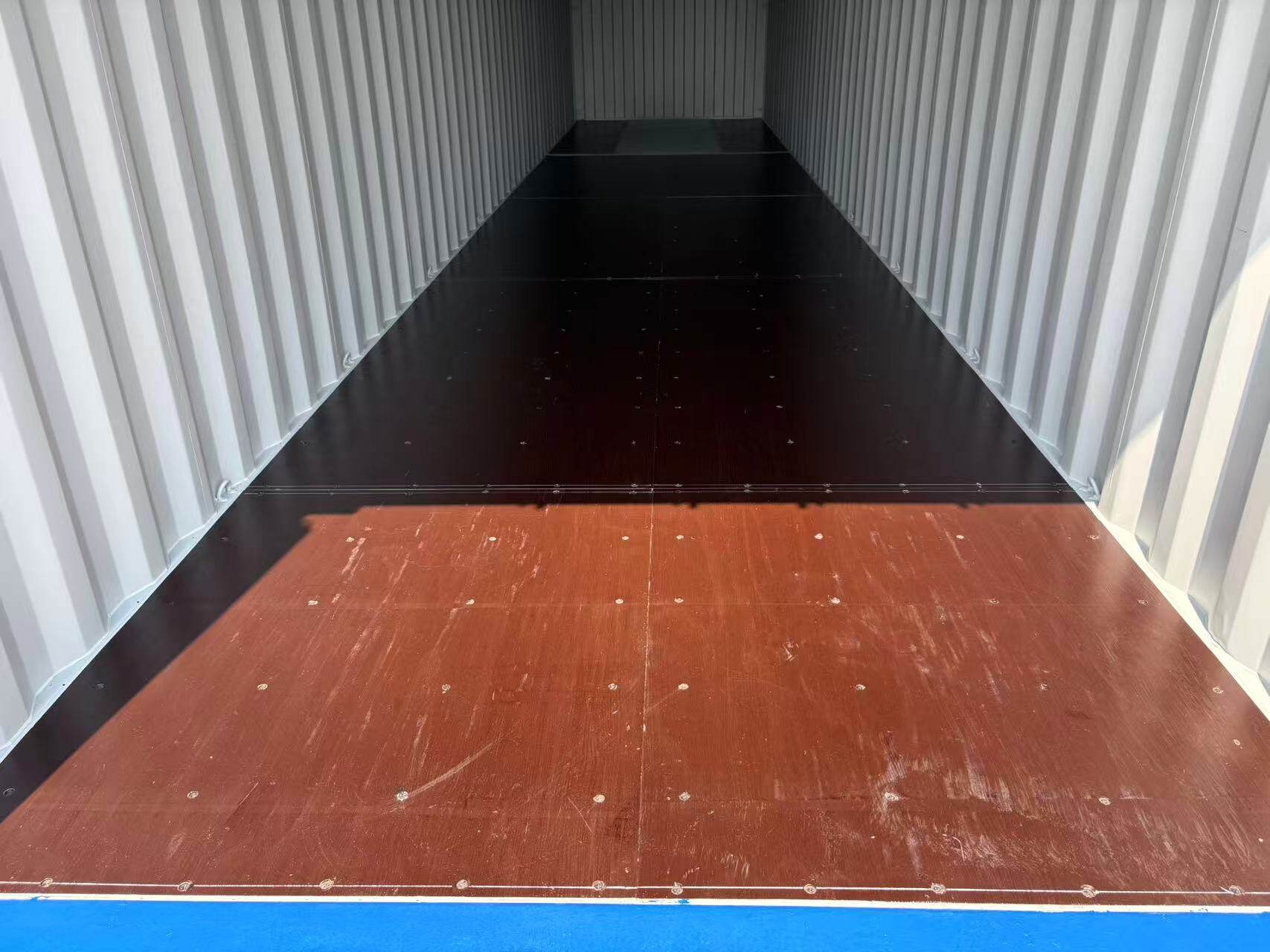

Floor Material

Marine-grade plywood

Wall Material

Corten steel

CSC Certified

Yes

ISO Standard

ISO 668 / ISO 1496-1

Owner Code

XNDU
